Addiewell No.1 mine

West Calder, Midlothian
Local authority:
West Lothian
Seams worked:
Raeburn Shale, Fells Shale
Abandoned 1866
Current status of site:
Both sites are within wooded river margins. No trace remains of surface features
Regional overview:


Inclined or level shafts to the Raeburn or Fells shale

Serving Addiewell Oil Works

Mining plans show two mines, 300 yards apart, on the southern bank of the Breich Water near Addiewell. Both are labelled "No. 1" on mining plans, but it is not known whether either was officially known as "Addiewell No. 1 Mine". The western mine (at 55.850405, -3.605140) might have been associated with workings in the Fells Shale linking many of the Addiewell pits, including No. 2 Pit. Available plans are difficult to interpret but it seems possible that a level road was driven from the outcrop of the Fells Shale in the river valley. Workings adjacent to this level road were last worked in 1883. It might alternatively be the case that this mine worked the Houston Coal. Oil Shales of the Lothians (British Geological Survey, first edition, 1906), states "On both sides of the Breich Water the Houston Coal was at one time extensively wrought, as shown by the numerous pits and mines defining its outcrop between the Blackbrae and Mid-Breich faults". The eastern mine (at 55.849672, -3.599991) was linked to the small scale workings in the Raeburn Shale served by Addiewell No. 4 Pit. These were abandoned in 1866. It is possible that No. 1 Mine was an exploratory working, following the Raeburn Shale from its outcrop on the steep hillside south of Breich Water.

See "Early mines and pits in the Addiewell area" for further background.

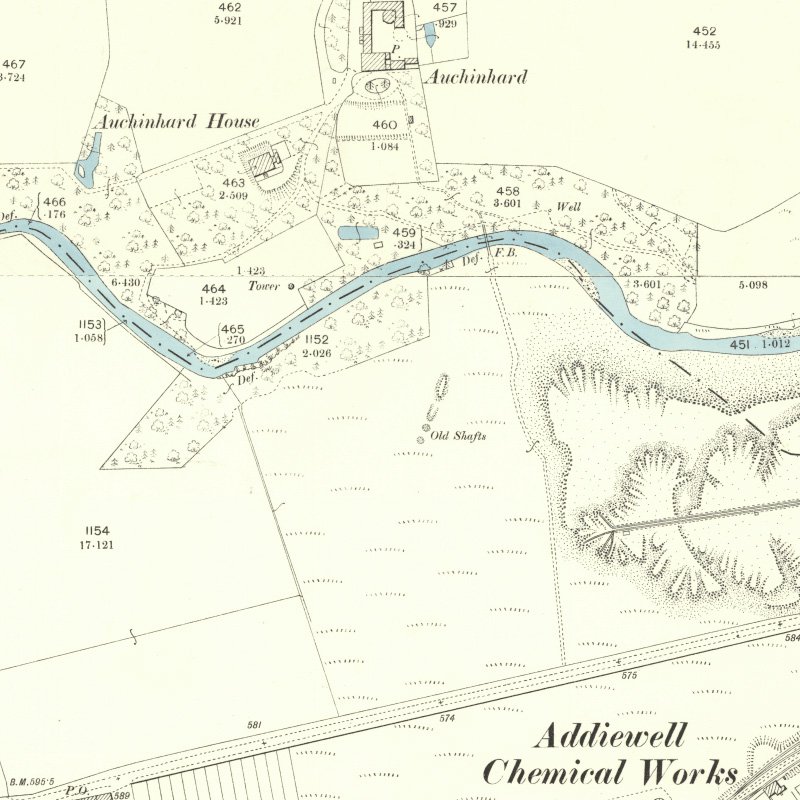

The "old shafts" mapped by the Ordnance Survey in c.1893, might represent subsidence of the adit.

  • Location & workings at Addiewell No.1 mine
    • Show seams:

  • Detailed maps
  • Recent images

  • External references
      • Coal Authority Mine Abandonment Catalogue No. S2873, showing workings in the Thick Shale from "Addiewell", abandoned in 1866.
      • Coal Authority Mine Abandonment Catalogue No. S2874, showing workings in the Houston Coal, Grey Shale, and Thick Shale from "Addiewell", abandoned in 1865.
      • Coal Authority Mine Abandonment Catalogue No. S2875, showing workings in the Thick Shale from "Addiewell", abandoned in 1866.
